Composite Drum
Composite drum that combines a polyethylene inner liner and a steel outer drum.
Composite drum that combines a polyethylene inner liner with excellent chemical resistance and a steel outer drum.
Achieves excellent impact resistance and load bearing capacity Complies with UN standards required for transporting hazardous materials, can be used for X grade materials.
Features
UN certified product
Conforms to X grade requirements with the combination of a polyethylene inner liner and steel outer drum.
Chemical resistance
Uses highly clean high density polyethylene to achieve strong chemical resistance.

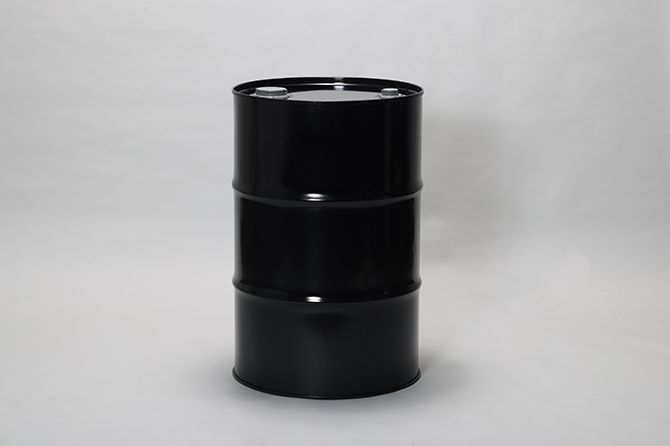

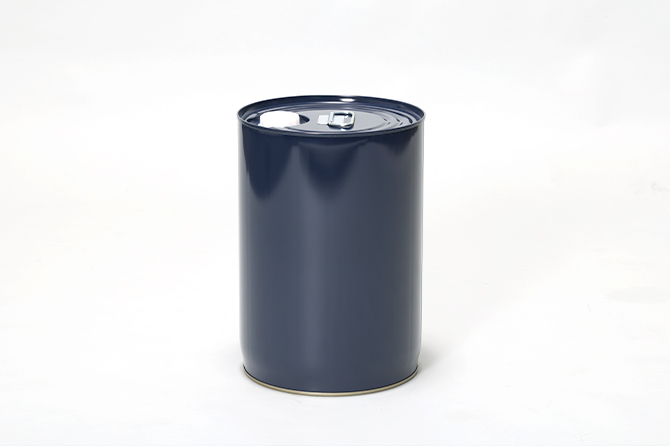

SEKISUI Drum

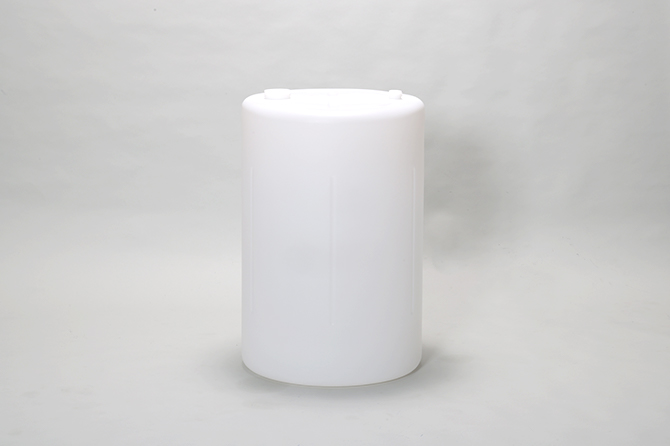

Combines a polyethylene inner liner and a steel drum

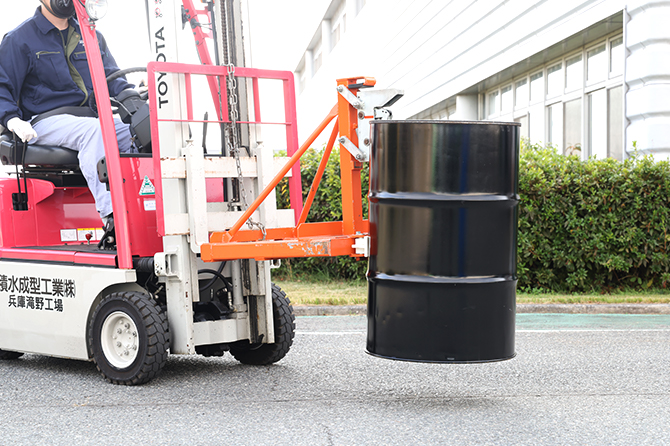

Combines a polyethylene inner liner with strong chemical resistance and a steel container to achieve excellent impact resistance and load bearing capacity.
List of product specifications
| Item |
Capacity(L)
|
Inner diameter(mm)
|
Outer dimensions(mm)
|
UN grade
|
Clean compliant
|

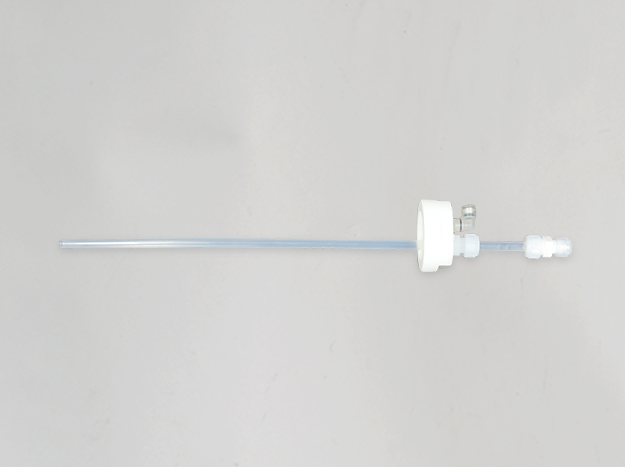

Diptube compatible
|
|---|---|---|---|---|---|---|
| SD200-Ⅰ | 200 | ø56.5-ø24.3 | ø571×895H | Y1.5/150 | ー | ー |
| SD200-Ⅱ | 200 | ø60.5-ø24.5 | ø571×895H | Y1.5/150 | 〇 | ー |
| SD200-Ⅲ | 200 | ø52.5-ø52.5 | ø571×895H | Y1.4/250 | ー | ー |
| SD200Ⅵ | 200 | ø58.5-ø24.3 | ø571×895H | Y1.5/150 | 〇 | 〇 |
| SD200-Ⅶ | 200 | ø49.5-ø49.5 | ø571×895H | Y1.4/320 | 〇 | 〇 |
| SD60 | 60 | ø50 | ø396×610H | Y/160 | 〇 | 〇 |

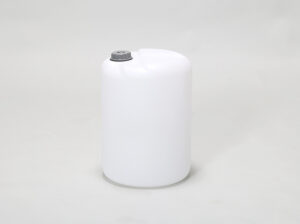

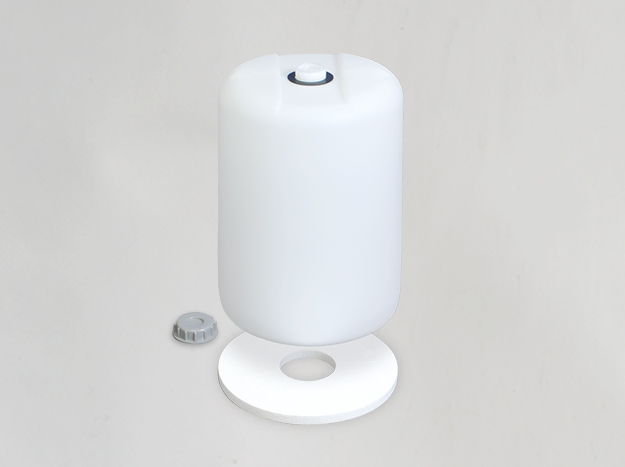

Polyethylene inner pail

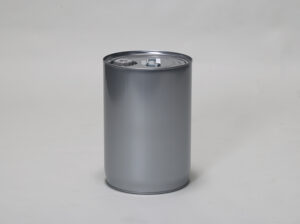

Combines a polyethylene inner liner and a steel pail
Combines a polyethylene inner liner with strong chemical resistance and a steel container to achieve excellent impact resistance and load bearing capacity.
List of product specification
|
Item
|
Capacity(L)
|
Diameter(mm)
|
Height(mm)
|
Top plate diameter(mm)
|
Trunk diameter(mm)
|
Body diameter(mm)
|
UN grade
|
|---|---|---|---|---|---|---|---|
| 22AT | 20 | 38 | 415 | 290 | 287 | 280 | 6HA1/X1.4/250 |
| 22AT-50 | 20 | 50 | 415 | 290 | 287 | 280 | |
| 12AT | 10 | 38 | 250 | 290 | 287 | 280 | |
| 22AT | 20 | 38 | 415 | 290 | 287 | 280 | |
| 22AT-OP | 20 | 38 | 419 | 307 | 287 | 280 |

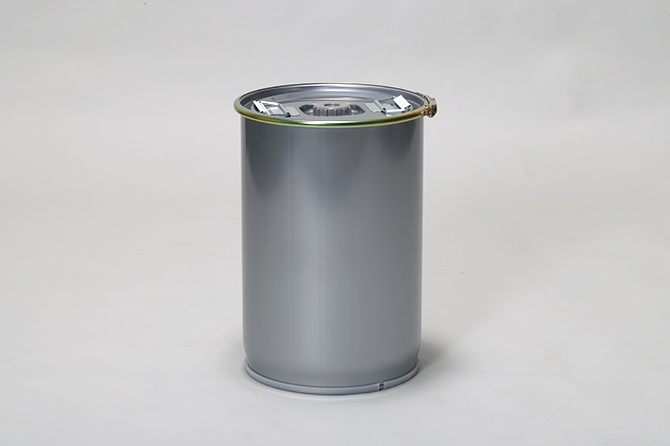

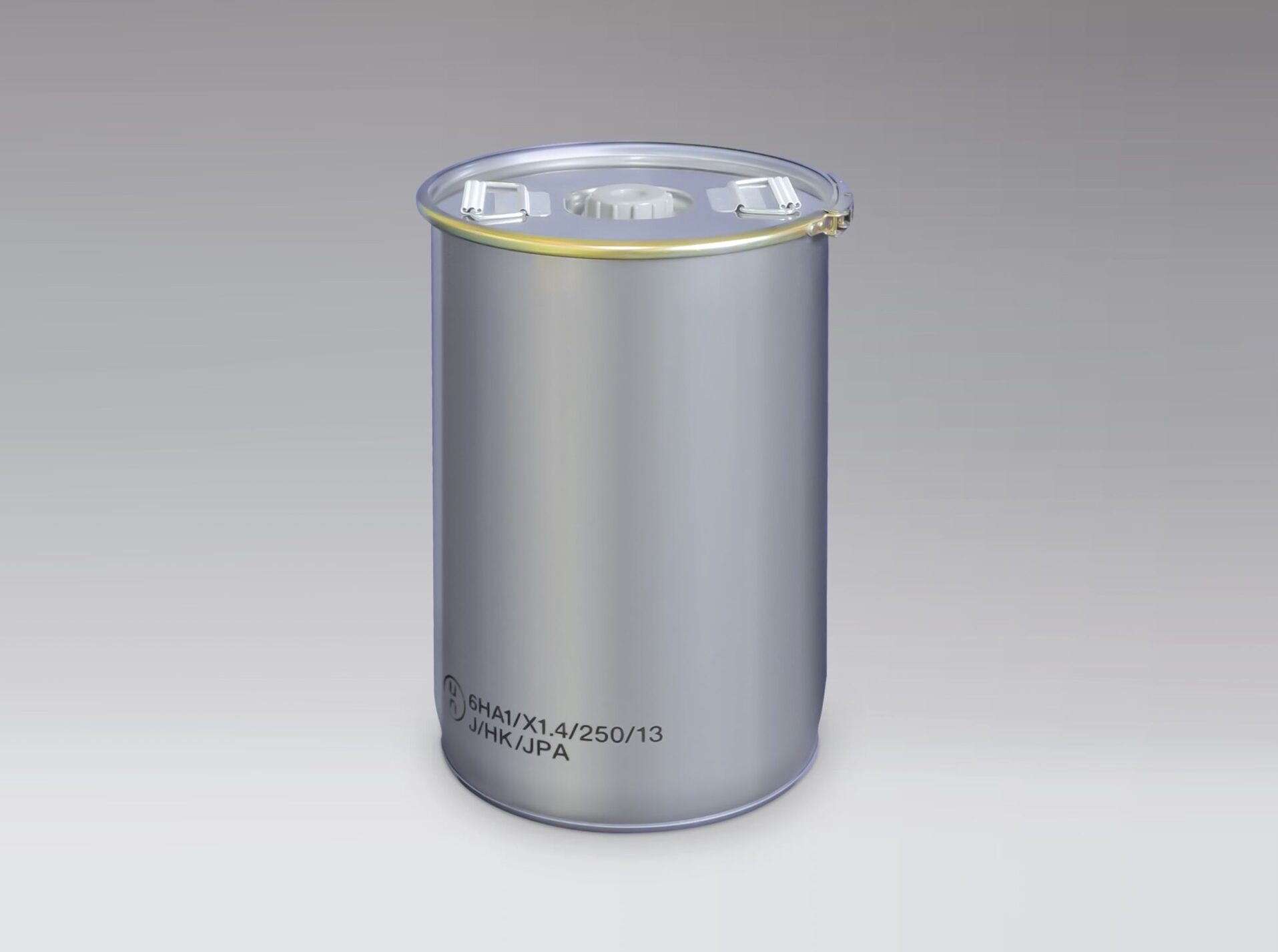

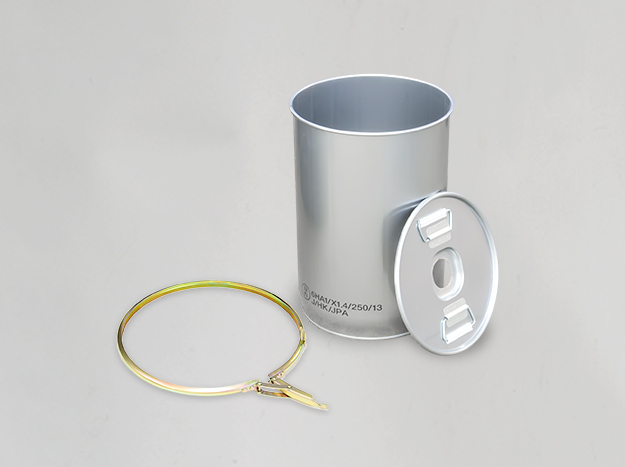

Eco-type polyethylene inner pail
Open type pail that combines a polyethylene inner liner and a steel outer pail
Designed to pool the liquid in the center of the bottom, greatly increasing its ability to minimize residue.
List of product specifications
|
Item
|
Capacity(L)
|
Diameter(mm)
|
Height(mm)
|
Top plate diameter(mm)
|
Trunk diameter(mm)
|
地板径 (mm) |
Exterior plate thickness(mm)
|
Inner bad wall thickness(mm)
|
Distance from top of opening to inner part of bottom(mm)
|
|---|---|---|---|---|---|---|---|---|---|
| 22AT-Z | 20 | 38 | 433±3 | 305±2 | 305±2 | 280±2 | Top0.6 Body0.5 | 1.0 or higher | 410 |
Dedicated website
See details about clean containers on the dedicated website.
